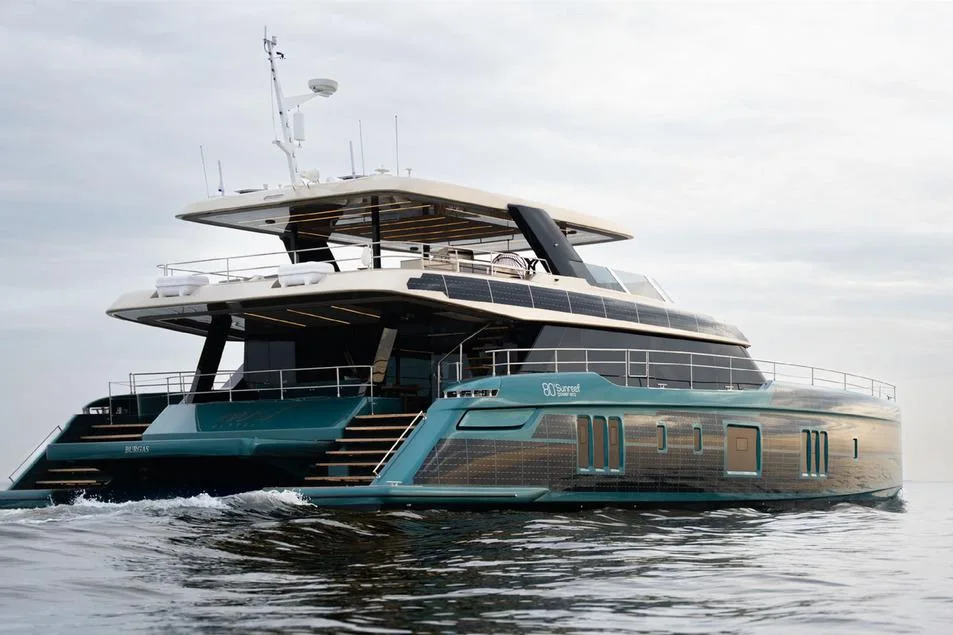

SUNREEF 80 ECO

GENERAL OPTIONS

2 complete engines 180KW at 900 RPM each

Special propulsion batterie bank 360 KW (700 Volts)

Stainless steel shafts

2 fuel tanks of 4000L each

Engine speed controls on flybridge and in saloon

Rope cutters on the propeller shafts

Upgrade of propulsion batterie bank from 360kW to 475kW

Batteries bank upgrade from 360 kW to 760 kW

Bow thrusters (2 pcs)

UPGRADE Bow thruster to model 600V

Back up PLC (Backup Engine Communication Path)

Backup MLC battery control path (Battery Management System)

DECK GEAR

Composite hard top bimini on the flybridge with windows and integrated lights

Rigid wave breaking window on flybridge

hydraulic gangway

Flush hatches on deck for forepeaks

1 swim ladder on the skirt

2 aft capstans for mooring

Garage for water toys

Covers set (navigation station, flybridge tables)

Additional covers set

Jetski launching system for garage

6x retractable Stainless Steel Seasmark B400x Cleats insatead of standard one

Inox Style shower on aft stair to be added

ELECTRICAL SYSTEMS

AC-230V, 50Hz 1ph: main switchboard, 2 times 30 kW inverter/charger (3 phase 400V 63A with 20 kWh charge), two DC genset 150kW each 700 Volts for charging main batteries bank, DC-DC charger for 24 volts bank, two shores connection 63A, One 10” Display with Basic PMS, overview and alarm -Batteries, overview and alarm el-engines, overview and alarms.

-Charger inverter and control of charge power.3x socket 230V in cabins, 4 in saloon, 4 in dining area and 4 in galley, 2x USB socket in each cabin and 2x in saloon

DC-25.6V: main switchboard, house batteries (25.6V/20KW) Lithium NCM, starting batteries, DC distribution, wiring

Additional Charger for engine starting batteries, one on each side

Additional Inverter 120V/60Hz/3000W + 10 sockets

Additional Inverter 120V/60Hz/3000W + 10 sockets

Upgradel Inverter to 40KvA

Solar panels (30,8 kWp)

Soundproof cover for generators (set)

Wind turbine 450 W ( Silent wind)

DISCOUNT Wind turbine 450 W ( Silent wind)

LIGHTS

Lights with LED lamps

Domotic system for lights, controls, and D/C system, including dimmers for ceiling lights (Domotic system function):

Control:

- Lighting with dimming

- Navigation lights

- Control of valves and pumps of black water

Measurement:

- Tank level monitoring with alarm: fresh water, black water, fuel

- Battery and Victron charger monitoring with alarm: starter/ main batteries bank/ emergency batteries (if installed)

- Measurement of temperature in the engine room

Lights in the engine rooms

Exterior lighting package (underlighting of fixed furniture on flybridge and cockpit - LED stripe in white; cockpit ceiling two LED stripes surrounding in white; LED white stripes on skirts)

Underwater lights LED, one color to be chosen along with localization: white or blue (price per unit)

NAVIGATION AND ELECTRONICS

Compass (size 135mm)

Chronometer and barometer

RAYMARINE: 2x Axiom 12', Radar RD424HD 24" 4kW 608mm digital radome radar, evolution autopilot, AIS700, depth, speed & temp sensor, wind sensor, GPS, Ray90 VHF with dual station, searchlight + control unit, fog horn

Wireless autopilot controller

Upgrade to RAYMARINE: 2x Axiom XL 16', Radar RD424HD 24" 4kW 608mm digital radome radar, evolution autopilot, AIS700, depth, speed & temp sensor, , wind sensor, GPS, Ray90 VHF with dual station, searchlight + control unit, fog horn

5G/LTE Wifi antenna worldwide

External cameras with color and night vision - 2 pcs

STARLINK with two antennas

STARLINK installation

Class A AIS

PLUMBING

Fresh water: 2x 800L with level indicators, pressurized pump, 2 water heaters of 100L each

Black water: 1x 500L tank with pump discharge system, electric pump

4 electrical bilge pumps

2 manual bilge pump

Hand shower on deck

1 pressurized fresh water outlet on cockpit (female quick-coupling snap connector)

Electric toilets 24V in bathrooms with fresh water flush

Fresh water inlet (connection between the boat's water network and the shore water supply)

Fresh water outlet for washing the deck

Retractable hose (5mb) with shower head in chain locker for chain wash

Watermaker 280l/h – 230V

Watermaker 280l/h – 230V

Watermaker Eco Systems

Additional Bilge pump in both forepeaks

Water system Quooker PRO3

COMFORT ON BOARD

Electric blinds (plisse) in saloon

Manual roman blinds in cabins

Curtains and backdrop for entrance door

Galley appliances package (Bosch or/and Siemens): refrigerator with freezer, dishwasher, electric oven, electric stove cooker hood

Washer&dryer (one item) (Bosch or Siemens)

Sunpad area on aft flybridge

Stainless steel sliding entrance door

Pantograph electric door to front deck

Multifuctional full-size rest-lounge with foldable backrest

Front deck cushions

Electrical appliance

Air conditioning to 200 000 BTU/h (new technology ultra efficient – Energy Saving)

Wine cooler in the saloon

Leisure items

Widescreen LED TV 55” with installation (saloon)

Widescreen LED TV 32” with installation bracket (cabins)

Lifting system up/down (if possible depend on layout)

Hi-Fi Pack 1: for saloon or/and outdoor

8.3.5.1 Yamaha Home Cinema Receiver 7.2 + 5x ceiling speakers + 1x active subwoofer

8.3.5.2 2 waterproof speakers in the cockpit and 4 in the flybridge

8.3.5.3 4 waterproof speakers on front deck

Safe (price per unit)

Electric diving compressor 100L/min 90-330bar

Diving bottles holder

Diving locker finiishing layout

Jacuzzi on the flybridge

Modification jacuzzi and raplacing to front tarrace

Bar module in cockpit

8.3.14.1 Sink with retractable faucet for the bar module

8.3.14.2 Ice maker for the bar module

8.3.14.3 Low fridge for the bar module

Bar module on flybridge

8.3.15.1 Sink with retractable faucet for the bar module

8.3.15.2 Ice maker for the bar module

8.3.15.3 Low fridge for the bar module

8.3.15.4 GAS Stainless Steel BBQ

Magic glass

FINISHING

Design fee (1 day with interior design + 3 renders - saloon, owner's cabin and owner's head

Interior wall and ceiling panels, sofas, headboards and beds in skai (artificial leather) or easy-clean fabrics*

Wooden furniture panels category A with mat polyurethan lacquer*

Vinyl floor in saloon and cabins

Decorative rug/carpet in saloon

Hull and deck in white gelcoat

Cockpit and skirts covered with teak

Deck covered with teak

Flybridge covered with teak

Hydraulic platform covered with teak

Fitted forepeak:

9.13.2 Comfort: bed and bathroom with composite painted wall

Air condition for forepeak (need air condition installation)

SAFETY EQUIPMENT

Manual fire extinguishing system in the engine rooms

Complete rescue equipment with life-rafts for 12 persons

Adaptation to commercial requirements, MCA Small Craft Code (MGN 280 (M) Cat 2)(needs option 11.1

Gas detection system + alarm (included in commercial requirements)

Gas detection system + alarm

DISCOUNT EPIRB (included in commercial requirements)

EPIRB (incluced in option MCA)

Jet ski 30SC - GTI SE 170 Teal Blue/Manta Green

MOORING TOOLS

Windlass 3000W 24V

Anchor CQR 81kg + 80m galvanized chain (diameter 14mm)

Additional anchor 20kg + 20m galvanized chain (diameter 10mm)

50m tow line

Mooring set (8x fender, 4x mooring rope)

Windlass upgrade to 3500W, anchor CQR 90kg + 100m galvanized chain (diameter 14mm)

Additional windlass 3500W with anchor Ultra Marine 100kg + 100m galvanized chain (diameter 14mm) (included in 10.2)

STEETING SYSTEM

Bronze rudders

Steering wheel

Hydraulic steering system

2 emergency tillers
