NIRVANA

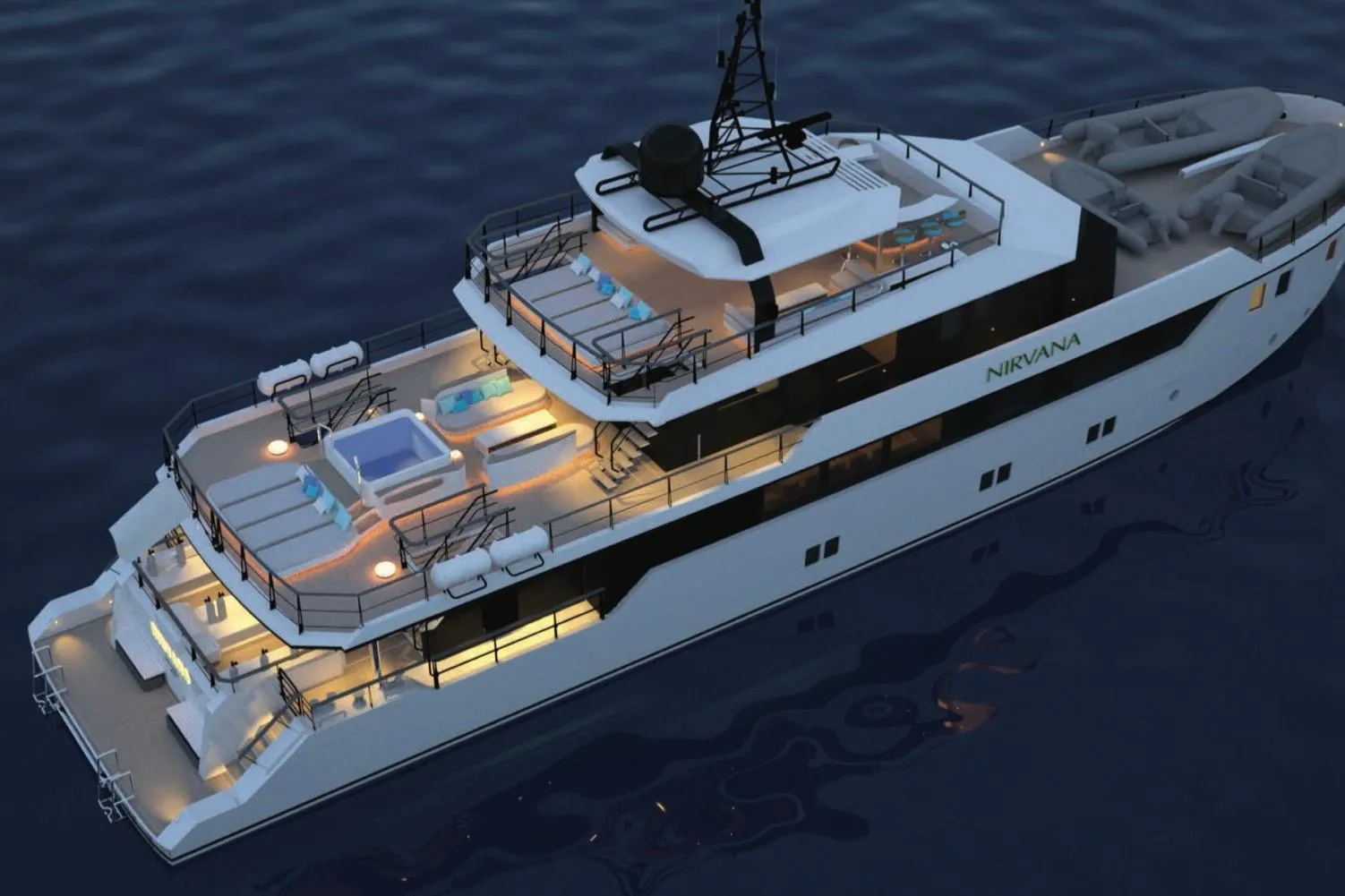

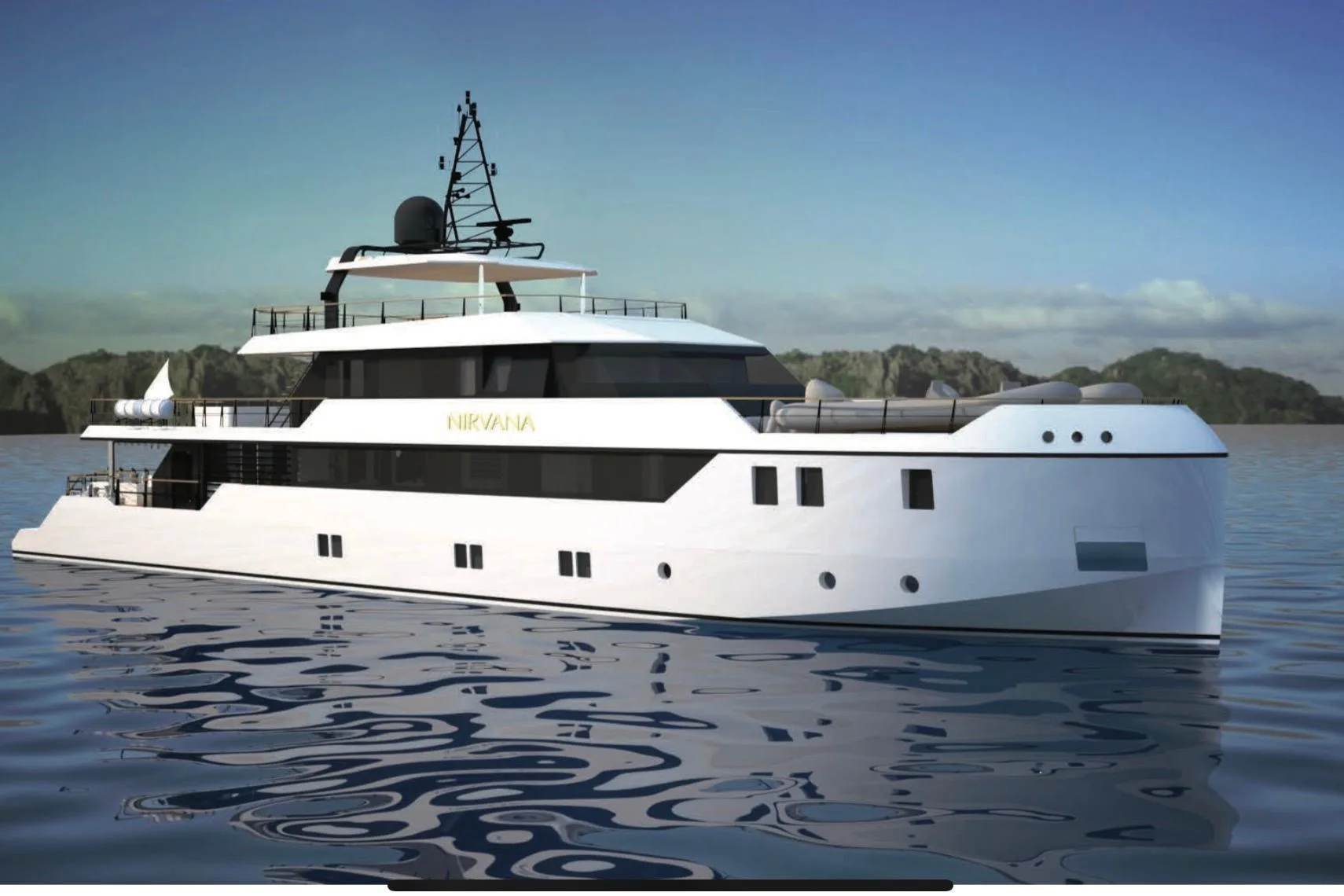

This 39.95m passenger yacht project was left in an unfinished state and remains as shown. Designed to accommodate 16 guests in 10 cabins, she offers generous volume and layout flexibility. The yacht is available for purchase as-is, or you may complete the construction and customize her to your requirements.

Specifications

General Information

• Yacht Name: 40 M SOYASLAN N130

• Type: Passenger Yacht

• Flag: Palau

• Classification: Bureau Veritas (✠ HULL • MACH CHARTER YACHT – motor – S Unrestricted Navigation)

Dimensions

• Length Overall (LOA): 39.95 m

• Waterline Length (LWL): 39.81 m

• Beam: 9.00 m

• Draft: 2.30 m

• Depth: 4.03 m

• Gross Tonnage: 390 GT

• Displacement: 316 tonnes

Performance

• Maximum Speed: 14 knots

• Cruising Speed: 12 knots

Capacity

• Crew Capacity: 13

Engines & Machinery

• Main Engines: 2 × Doosan 4V222TIH (588 kW @ 1800 RPM)

• Reduction Gears: 2 × Doosan (3.02:1, with trolling valve)

• Propellers: 2 × 1275 mm, 4-blade ERC propellers

• Bow Thruster: 55 kW ERC

• Generators: 2 × Doosan AD136 (93 kW each)

• Sewage Treatment: ACO Clarimar MF3 with vacuum interface

Electrical & Systems

• Electrical System: BV certified wiring & distribution panels

• Navigation lights installation completed

• Bilge & fire systems with electric-controlled valves

Outfitting

• Anchors: 2 × 360 kg HHP with 275 m chain (BV certified)

• Anchor Windlasses & Capstans: DATA brand with steel bell

• Steering Gear & Rudders: DATA brand

• Hydraulic Fore Crane: 10 ton.m with electro-hydraulic power pack

• Air Conditioning: 360,000 BTU chilled water system with fresh air makeup units

• Watertight doors (in-house designed & tested)

• Scuba Compressors: 1 × Coltri LP 300, 2 × Coltri MCH16 Mark 3

• 56 Aluminum Anodes (5-year replacement cycle)
