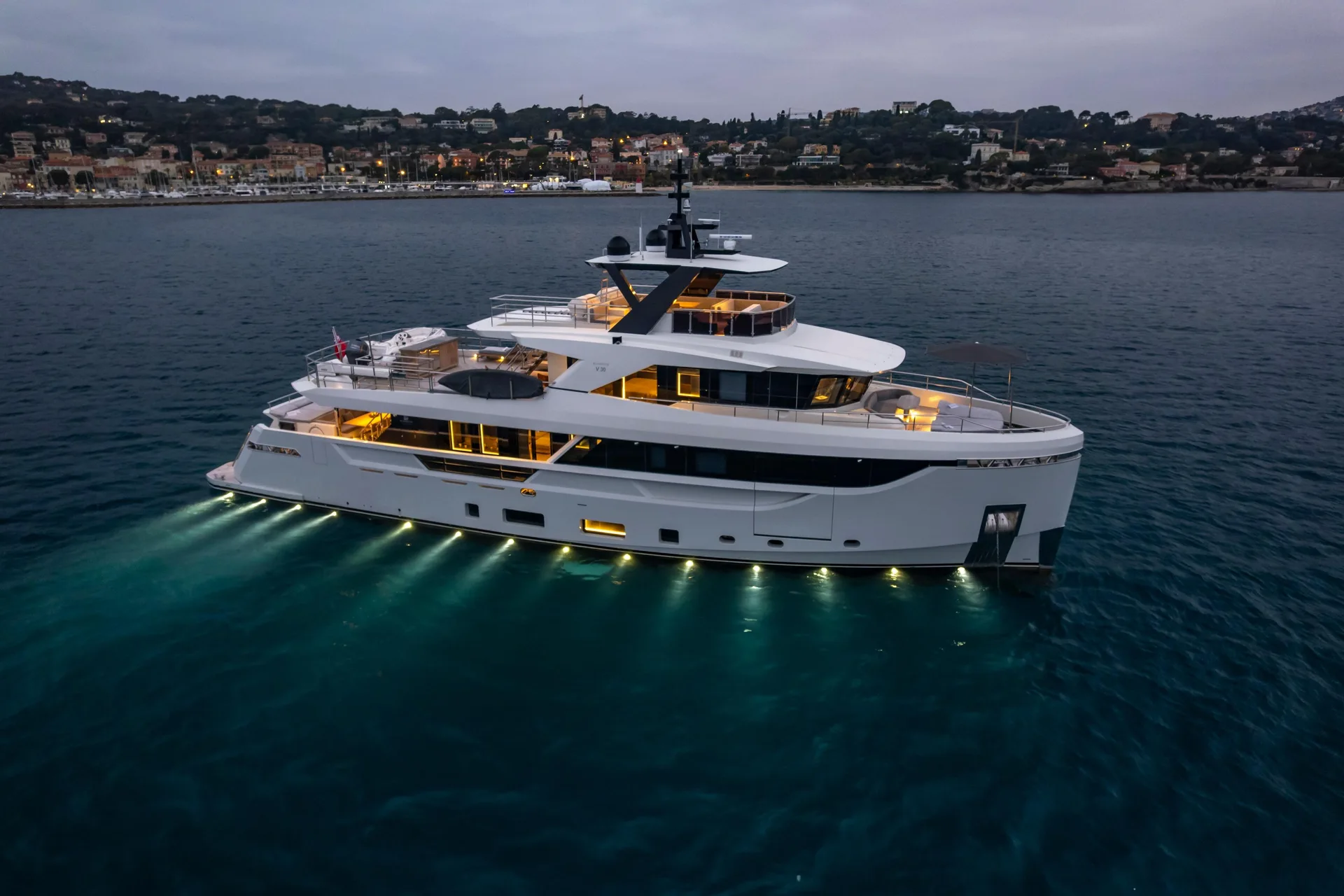

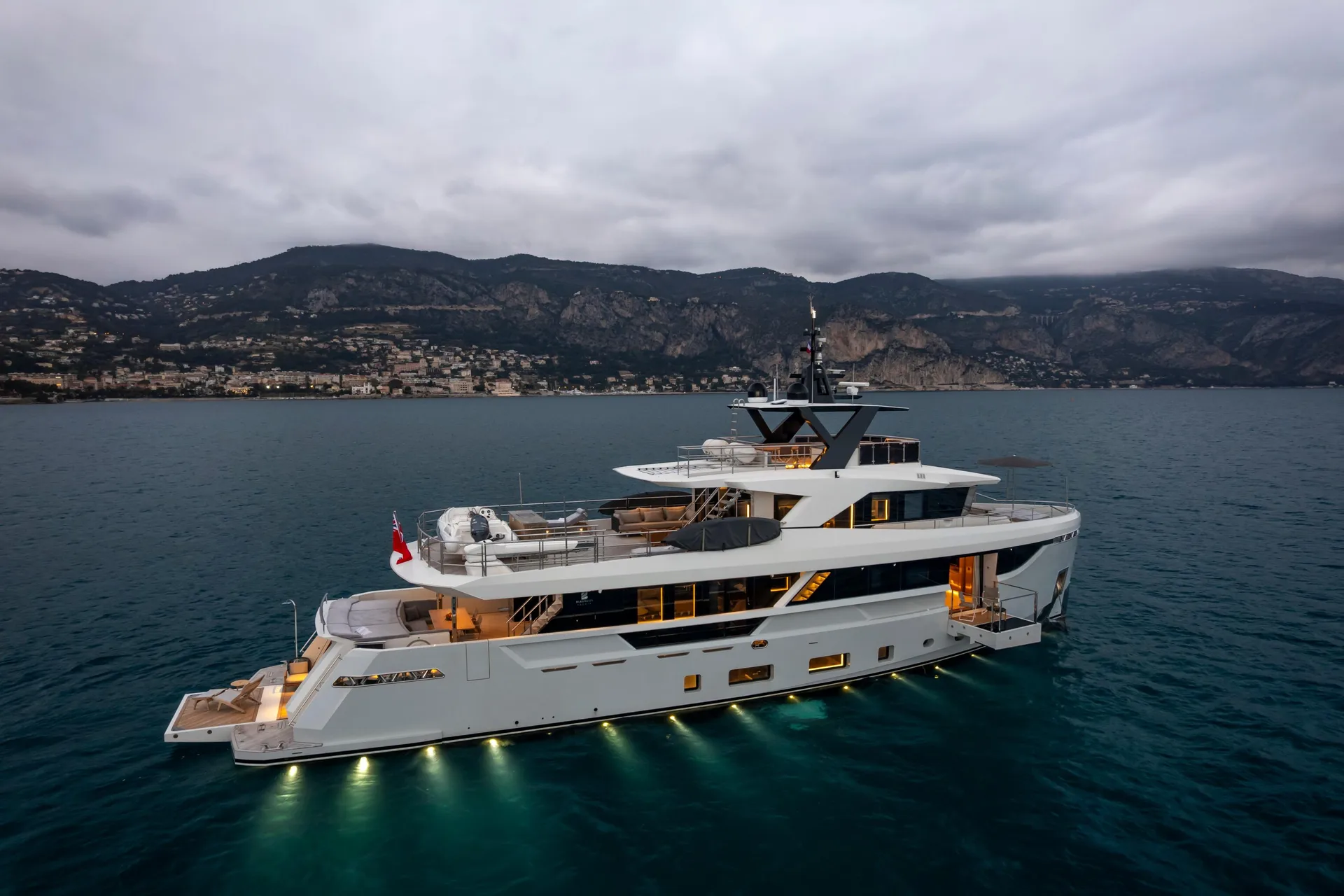

BLAUNDUS V30 EXPLORER

She will be in Cannes Yachting Festival 2026!

EBYSHINE

30.00 M / 98'05''

MAIN CHARACTERISTICS

Name: EBYSHINE

Type: Explorer / Trawler

Builder: Blaundus Yachts

Year: 2023

Hull No: #2

Yacht Model: B30

LOA (M/FT): 30.00 M 98’05”

LWL (M/FT): 29.05 M 95’04”

Beam Overall (M/FT): 6.94 M

Beam moulded (M/FT): 6.94 M 23’01”

Draft (Half Load) (M/FT): 2.25 M 7’05”

Draft (Full Load) (M/FT): 2.35 M 7’09”

Gross Tonnage: 219

Displacement (Fully Loaded): 220 T

Hull Material: Steel

Superstructure: Aluminum Bridge Deck, Composite Sun Deck

Decks: 3

Flag: United Kingdom

Classification: RINA Commercial

Naval Architect: Emrecan Özgün

Exterior Designer: Unique Yacht Design

Interior Designer: Studio Urun Design

Main Engines: 2 x Man 641 HP (D2676LE425)

Speeds: 13.5 kts Max

10 kts Cruising

9 kts Economical

Range: 4,150 nm @ 9 kts

Guest Accommodation: 10 guests in 5 staterooms

Crew Accommodation: 5 crew in 3 cabins

ACCOMMODATIONS

OVERVIEW:

10 Guests in 5 Staterooms and 5 Crew in 3 Cabins

LOWER DECK:

6 Guests in 1 Master Cabin and 2 Twin Guest Cabins

MAIN DECK:

Master Cabin for 2 Guests

OWNER’S STATEROOM:

Fly Deck Master for 2 Guests

CREW ACCOMODATION:

5 Crew in 3 Cabins (1 Single Captain Cabin and 2 Bunk Bed Cabins, all en-suite ), Crew

Galley and Crew Mess

CONSTRUCTION

Hull Material: Steel

Superstructure Material: Aluminium and Composite

Decks Material: Teak

CAPACITIES

Gross Tonnage: 219

Fuel Capacity: 27,059 L

Fresh Water Capacity: 6,490 L

Grey Water: : 2.312 L

Black Water: : 2.312 L

Sludge Tank (For Hammann) : 1.004 L

Fuel Overflow Tank : 364 L

Bilge Water Tank: 364 L

PERFORMANCE

Maximum Speed: 13.5 kts – 140 lt per engine/hour – Range: 1,300 nm

Cruising Speed: 10 kts – 40 lt per engine/hour – Range: 3,375 nm

Economical Speed: 9 kts – 30 lt per engine/hour – Range: 4,050 nm

MAIN MACHINERY

Main Engines: 2 x MAN 650 HP, D2676 Medium Duty

Engine Hours (Aug, 2026):

Port: 540 hrs

Starboard: 540 hrs

Propulsion Type: Direct shafts

Engine Controls: Joystick & Rudder – Data, Starter Arms – Man

Gear Boxes: ZF

Propellers: CJR

Engine Ventilation: Yes

GENERATORS & ELECTRICITY

Output/Electricity: 24/380

Generators: 2 x Kohler, 45 kW,

Generator Hours (Aug 2026):

45 kW: 3130 hrs – 45EF0ZDJ

45 kW: 3030 hrs – 45EF0ZDJ

Generator Fuel Consumption: 7 lt/h

Generator Exhaust System: Centek Marine Model : 1020400

Shore Power: 220v

Shore Power Converter: Yes

Shore Power Transformer: Yes

Batteries: 12x Artı Marin A602-1250 2.27v

Generator Start: 2 x Mastervolt 130A 24v

Engine Start: 2 x Mastervolt 225A 24v

Generator Charger: 2x Chargers Master Plus ( 24-12-3) , 24V

Engine Chargers: 2x Chargers Master Plus ( 24-20-3) , 24V

Service Battery Chargers: 2x MassCombı Pro( 24/3500 ) – 100

AUXILIARY MACHINERY

Steering System: Data

Bow Thruster: Hydraulic / DATA Model : Dhs 200-2x147-2tb-4b 380w 3 kw

Stern Thruster: Hydraulic / DATA Model : 200-2x147-2tb-4b 380w 3kw

Stabilizers: Yes, CMC Marine, Fin Model : 3153

Under Water Lights: 35x

Fuel & Oil System

Fuel Oil Separator: Alfa Leval Model : Mib 3 s 13/33 7500 RPM

Fuel Transfer Pump: Feit Model : GR50TM/VT+Bypass 1430 RPM

Fuel Filling Pump: Yes

Dirty Oil Pump: Yes

Engine room ventilation: 230 kW

Firefighting & Bilge System

Firefighting & Bilge System: Feit Model : TSL 25/1 1455 RPM

Firefighting & Bilge Pump: Feit Model : TSL 25/1 1455 RPM

Fresh Water System

Fresh Water Makers: x 2 Delfin Model : Maxi 7000 (300L/h)

Fresh Water Pressure: Yes

Hot & Cold Circulation Pump: Yes

Hot Water Boilers: x 2 Feit Model TR 150 )150L 39.6 gal

Sea Water Pumps: Yes

Black & Grey Water System

Black & Grey Water Treatment: Tecnicomar / Model Ecomar 32S 400V

WC's (toilets/bidets): TECMA / ELECTRIC

Black Water Pumps : Tecnicomar – Electric

Grey Water Pumps: Tecnicomar – Electric

AC & Ventilation System

Air Conditioning: Dometic air conditioning system

Air Compressor: Yes

Air Handling Units: Yes

Power: 252000 BTU – 14 total

Engine Room AC: Yes

Engine Room Ventilation: Yes

Galley Ventilation & Extraction: Yes

Refrigerator: Dometic CRX 00050

Hydraulic System: Data Hydraulic System

Total Fan Coil Capacity (BTU): 252,000

Total Fresh Air Capacity (BTU): 27,000

Total Chiller Capacity (BTU): 216,000

NAVIGATION SYSTEMS

Navigation Equipment 1 : Fruno Navnet Tzt BB – 19T22

Navigation Equipment 2 : Fruno Navnet Tzt BB – 19T22

Navigation Equipment 3 : Fruno Cctv – 19T22

X-Band Radar: Furuno DRS12a-X CLASS RADAR

UPS (Emergency Source): Victron

Magnetic Compass: Custom Made MB 1100

Auto Pilot: Simrad – A2004

Rudder Angle Indicator System: Data Marine

EPIRB: Sailor 4065

GPS: Furuno GP-330B

AIS: I - AIS Class B GPA-017S FA -50

Navtex: Furuno NX300

Horn: Custom Made

Search & Rescue Transponder: Sailor SART II

Search & Rescue Transponder: Epirp B

Night Vision Camera: Flir MC 300

VHF 1 : Furuno FM 0560

VHF 2 : Furuno FM 4800

Portable VHF: Sailor SP3520

DECK MACHINERY & EQUIPMENT

Anchors: x 2 (1 Custom Made – 1 Ultra)

Anchor Chains: 250 M – 250 M - 16mm

Anchor Windlass System: Data

Passerelle: Custom Made / SOMER

Sea-stair: Custom Made SOMER (Hydraulic System)

Swimming Ladder: Chrome Ladder Manual Installation

Paint Underwater: JOTUN

SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT

Security System: MFIRE

Monitors: 2x 1 Crew mess / 1 Bridge

Fixed Firefighting System: Yes

Firefighting Equipment: Yes

Smoke Detection: Yes

Fire Alarm: Yes

Alarms: Yes

Life Rafts: x 2

Lifejackets: Yes

Immersion Suits: Yes

SART: Sailor

Flares and Signals: Yes

Medical Equipment: Yes

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Video Equipment: TV in all cabins TVRO: Yes + Apple TV

Audio Equipment: LG TV and Surround Sound system in the living room

Outdoors: JL Audio Sound System

Control: Tablet Control

Light Management: Tablet Control

TV

Main Salon: LG - 76’’

VIP Master Stateroom: LG – 50’’

Master Stateroom: LG – 43’’

Master Guest Staterooms: LG – 43’’

Twin Stateroom : 2x Beko 43’’

Crew Salon : Dahua - 24’’

Crew Stateroom (Captain): Axen – 24’’

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Washing machine: Bosch 9 kg

Refrigeration/Freezer: Gaggenau RF287370 / 01 – 212 Lt

Dryer: Bosch 9 kg

Bakery: Gaggenau BO480112 – 110 Lt

Refrigerator: Gaggenau RC289370 / 01 – 289 Lt

Microwave : Gaggenau BM450110 – 36 Lt

Extra Refrigeration/Freezer: Beko – 85 LT

Kitchen extractor : Elica

OTHER EQUIPMENT

Sun Awnings: Yes

Beach Club: Yes

IACS Society: RINA
